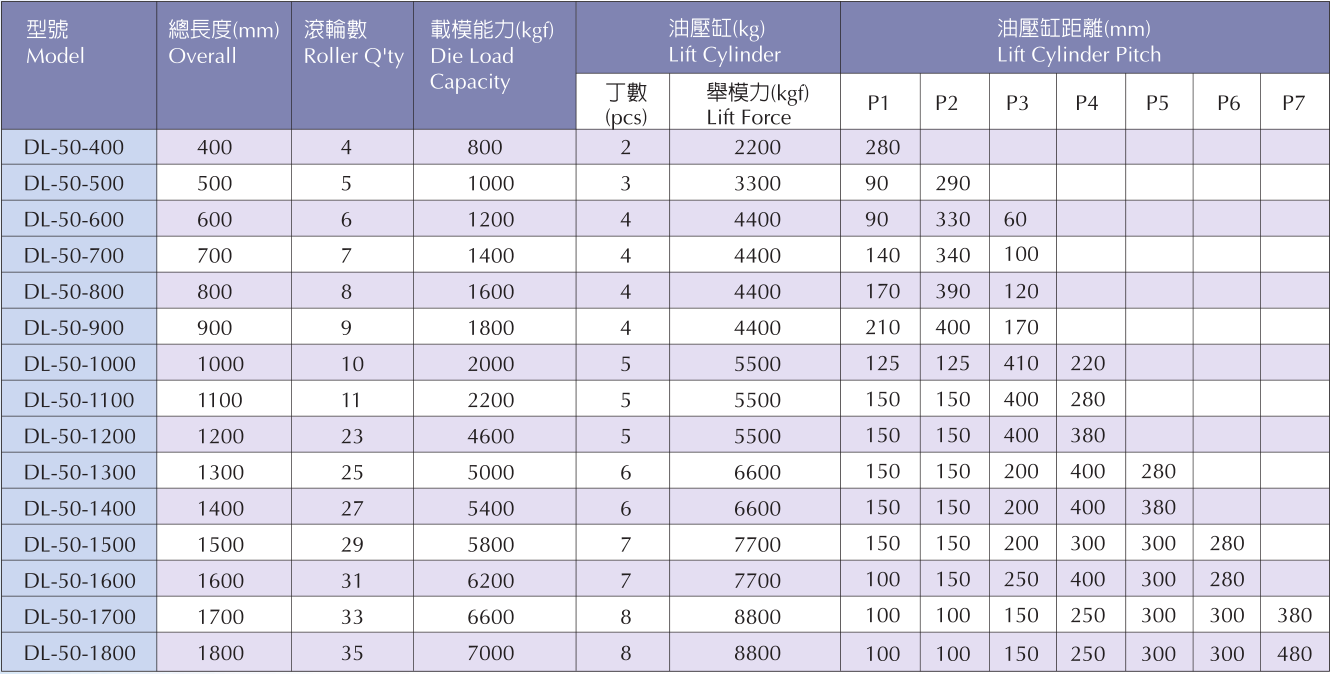

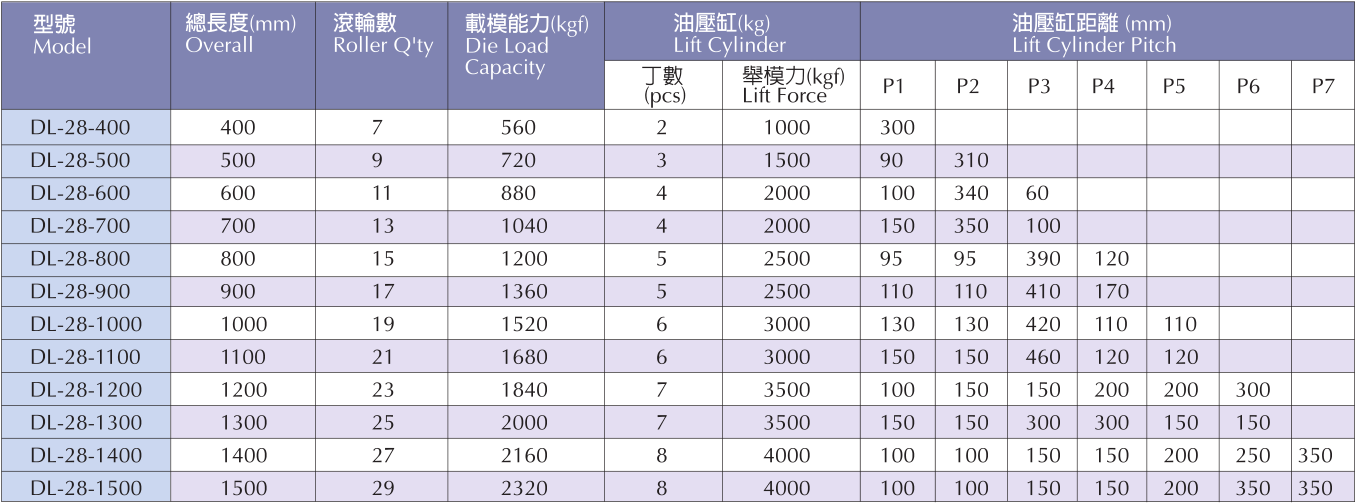

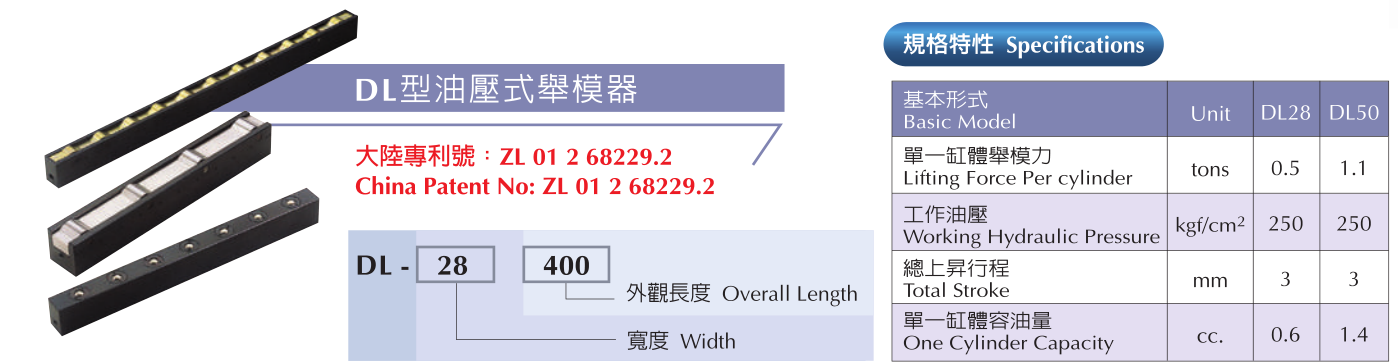

DL型油压式举模器,以油压方式举模,有强力举模能力,适合模具重量变化差异大时使用。

The hydraulic DL DIE LIFTER withstands heavy loads and abuse.

The scrap guard / scrapers keep the roller surfaces free from scrap.

The rollers are arrayed in closer pitches to prevent damage to the bottom of heavy dies.

The height of the roller can be adjusted by removing some of built-in shims of different thicknesses.

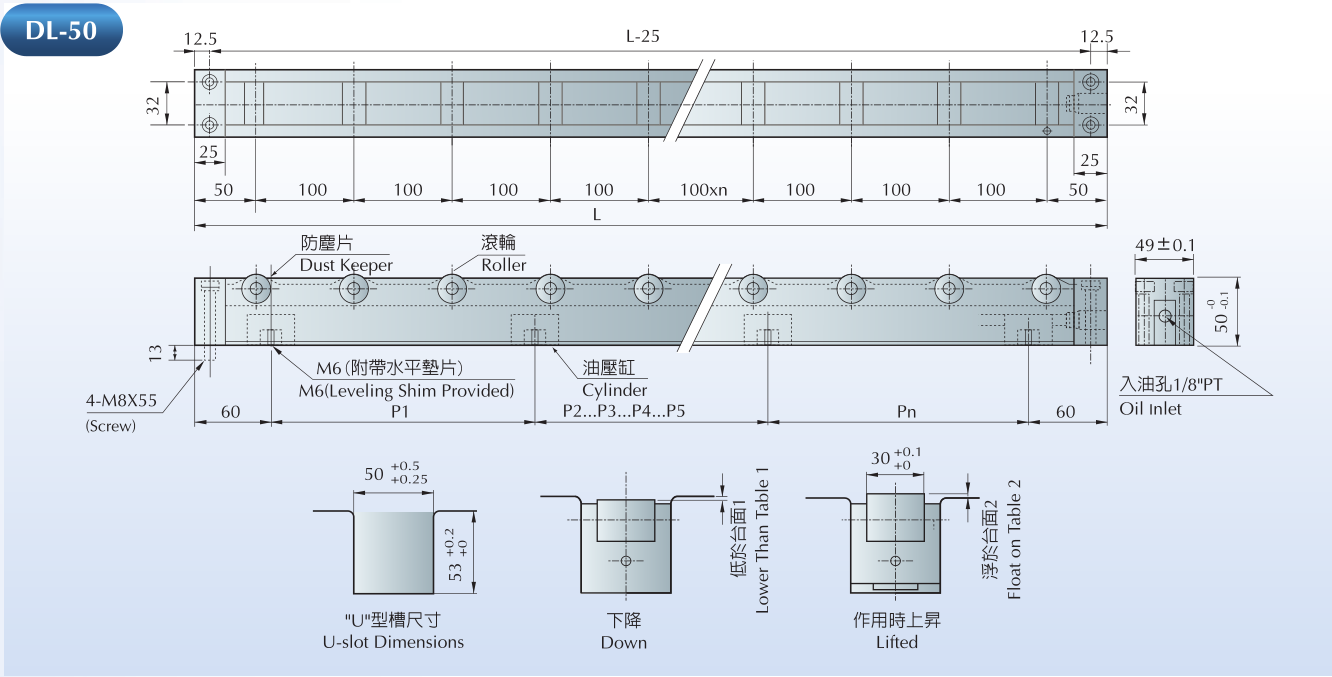

●1000L以上建议使用DL-50




●注:订购时,如有下料孔请附台盘图。

         For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.

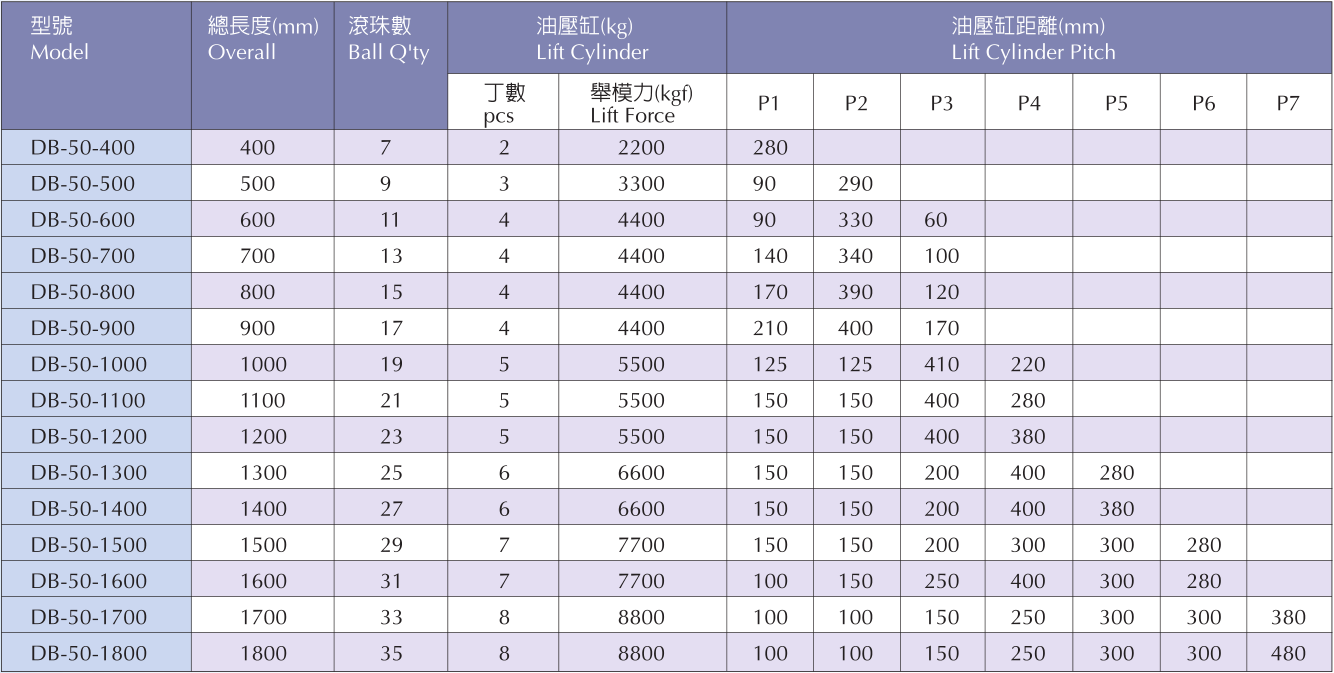

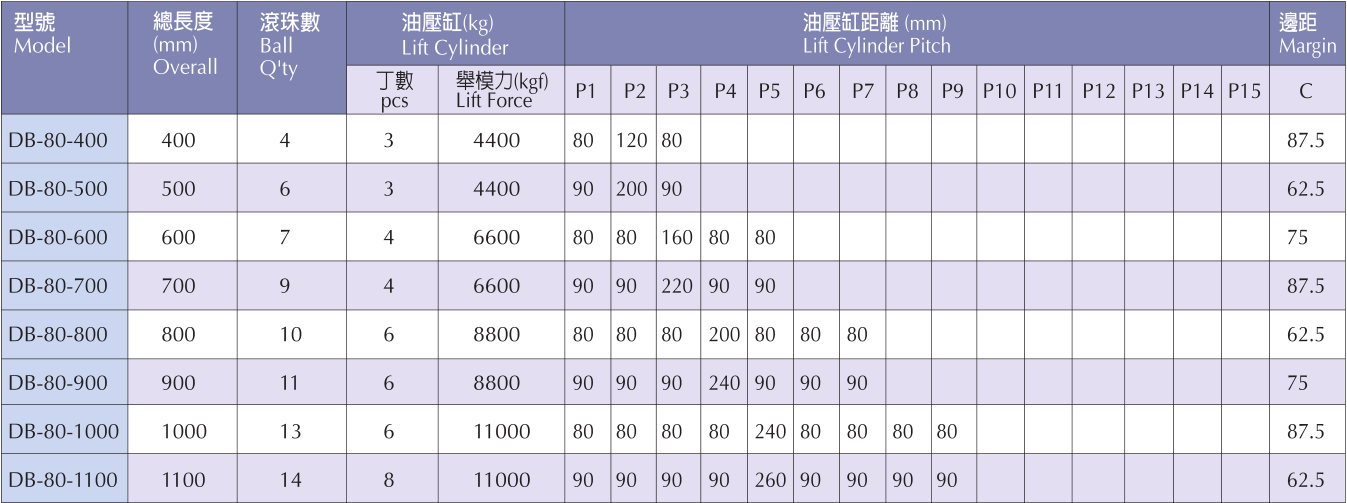

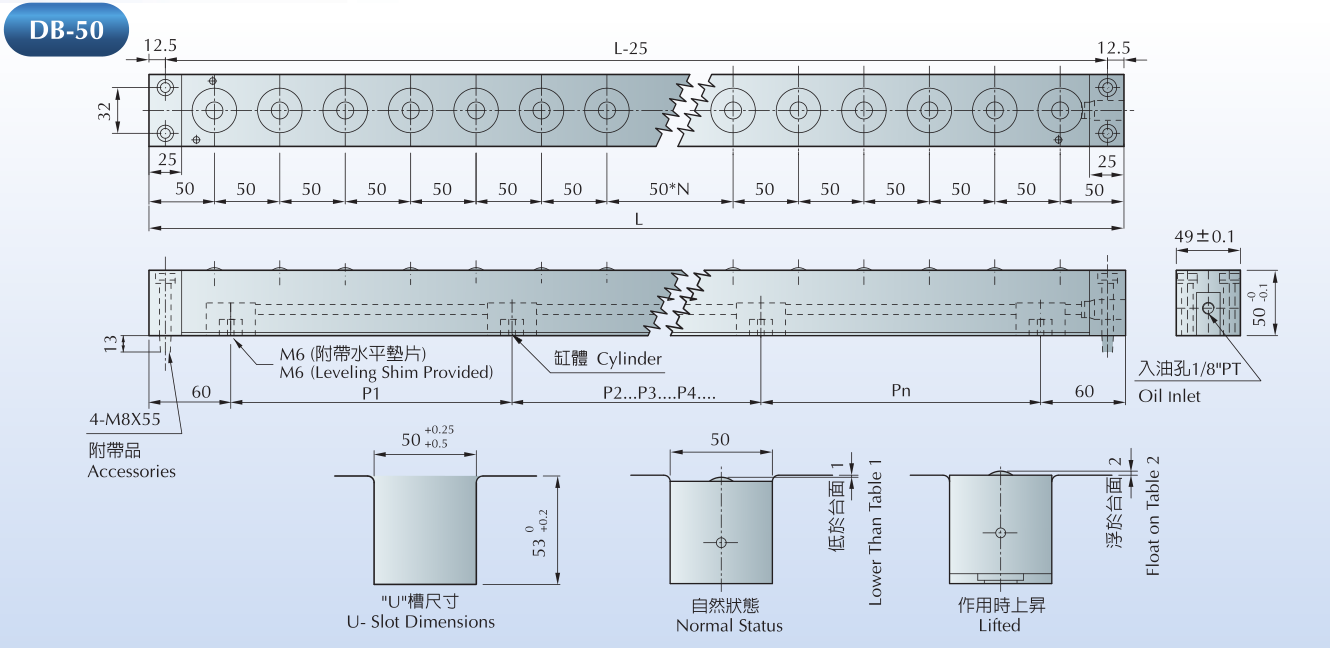

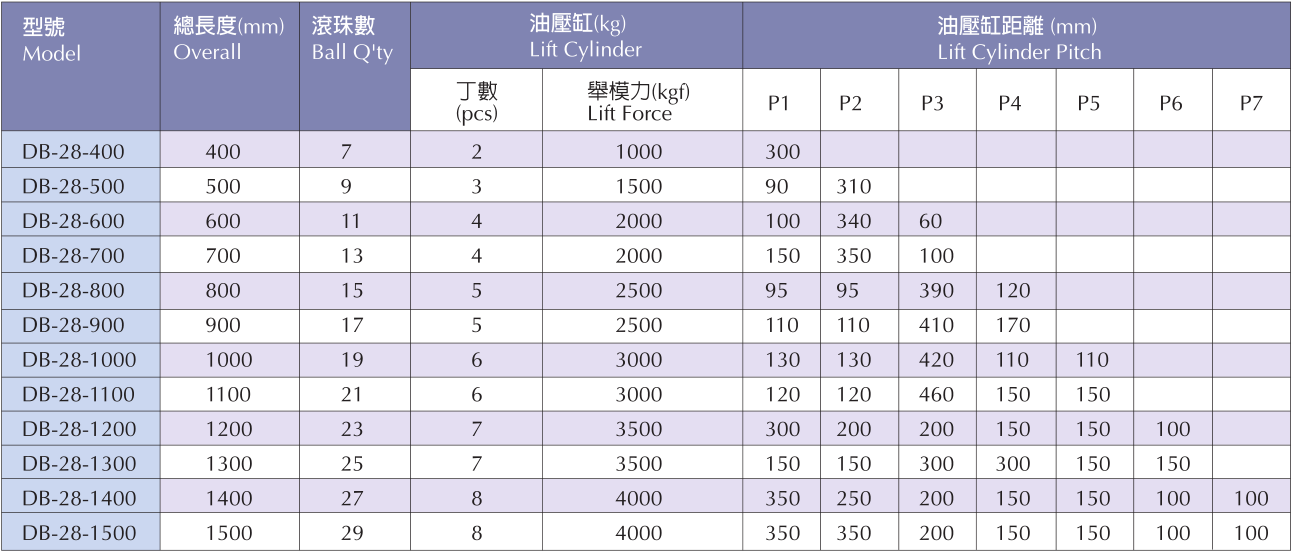

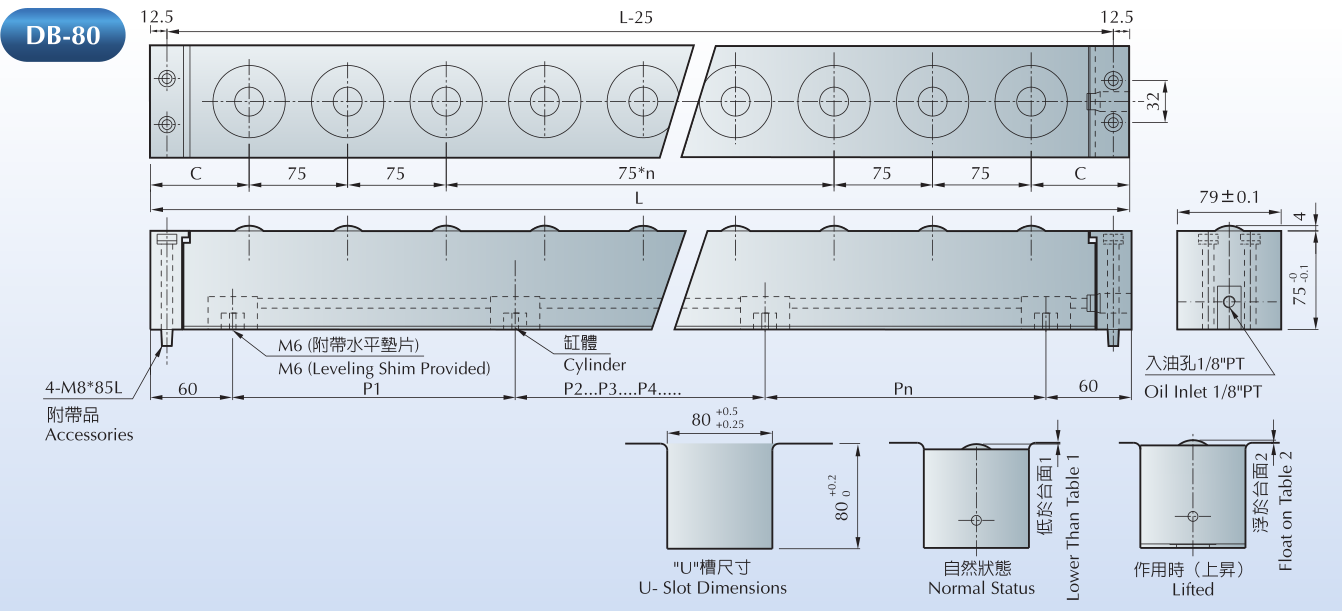

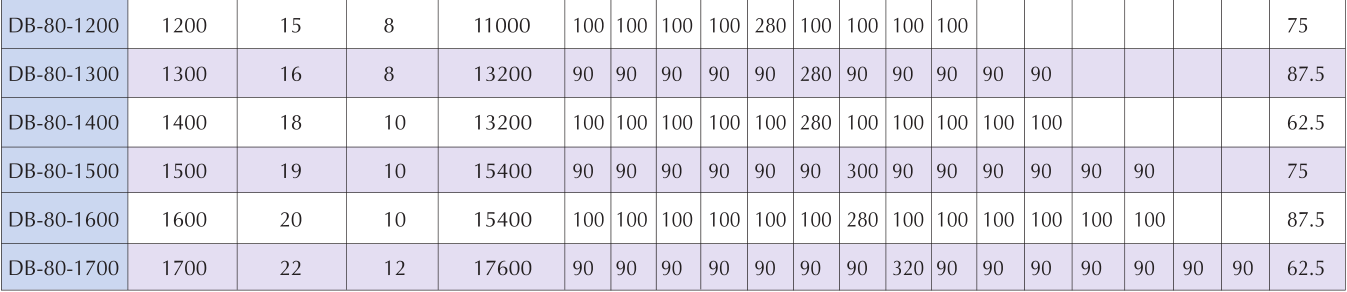

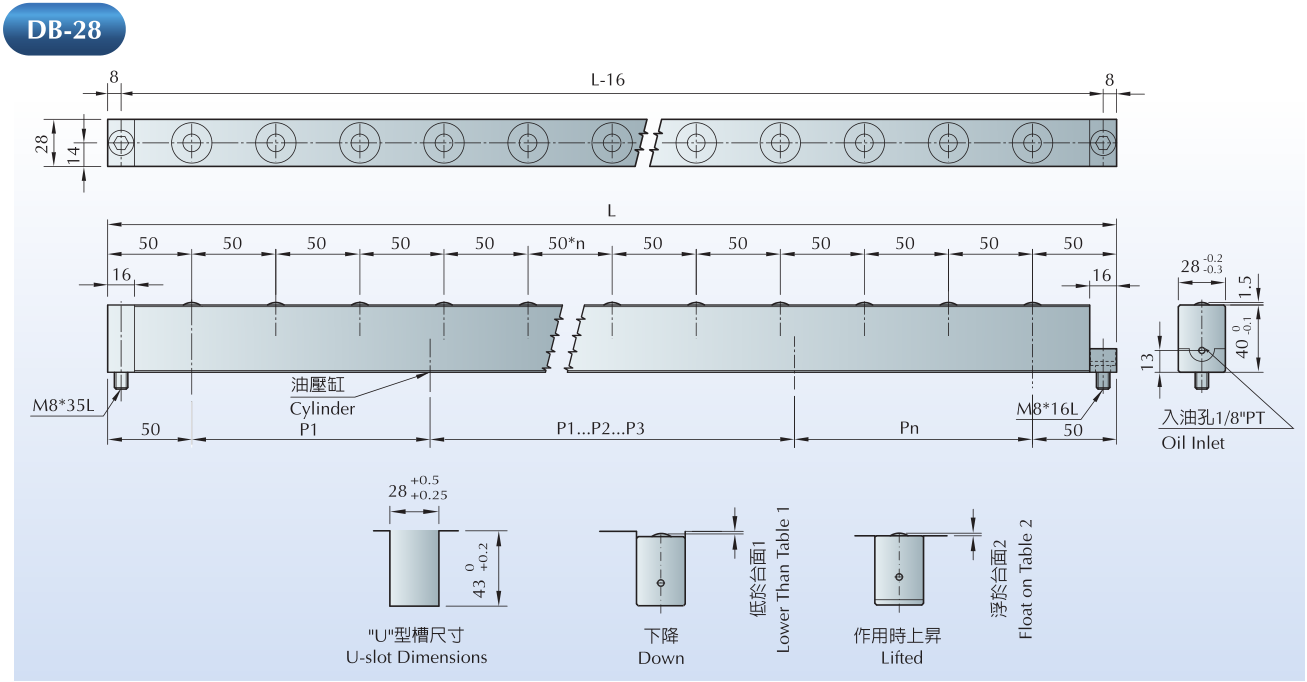

DB型油压式举模器,利用万向滚珠的方式,适合前后左右移动模具时使用。

The hydraulic DB Die lifter employs universal bearings for superior forward and reverse,left and right motion of molds in and out of press machines.



●注:订购时,如有下料孔请附台盘图。

          For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.







●注:订购时,如有下料孔请附台盘图。

          For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.






●注:订购时,如有下料孔请附台盘图。

          For purchases please attach a bolster plate diagram for correct sizing of the waste material hole at the bottom.
